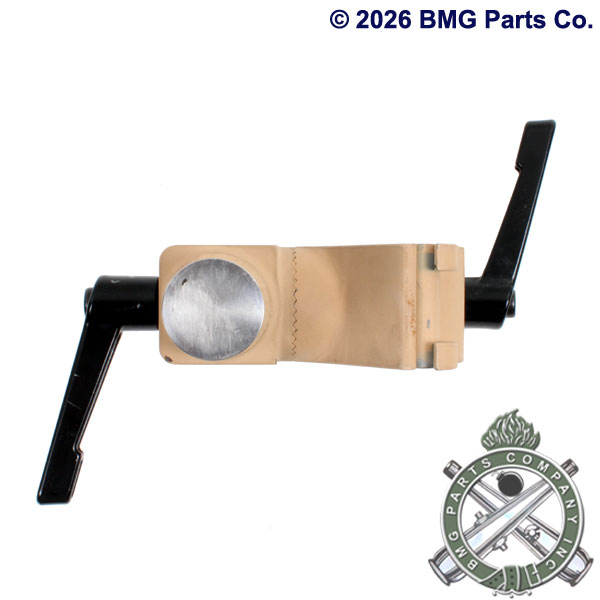

Clamp Mount, ATV, for Swing Arm Mount.


Clamp Mount, ATV, Swing Arm Mount (Swing Arm not included, but available): Patented 360 degree universal pintle mount was designed by former Tier 1 Special Operations personnel for use on ground mobility vehicles with tubular chassis and structures.

This mount has been fielded to USSOCOM under the LTATV program and are compatible with such platforms as the Polaris MRZR, MRZRD, MRZR-ALPHA and DAGOR or any vehicle with a 1.50-2.00″ tubular roll cage, chassis or substructure. Also, fits roll cage on the following: Can-Am, Ranger 4×4 (tubular roll bars).

Its ability to be mounted of both vertical or horizontal tube due to the pintles ability to rotate 360 degrees, provides a versatile system to adapt to the end users mission needs. Its ability to be installed in less than a minute, without the need for tools allows for rapid reconfiguring or weapon systems on vehicle platforms.

SPECS: High Strength 4130 allow steel hinge and mount with 17-4ph stainless pintle. Powder coated zinc handle is corrosion resistant. The threaded stud has the same hardness as a Grade 8 bolt.

U.S. Materials and U.S. Made.

Patent: US 10,794,654 B2

NOTE:  Swing Arm is not included, but available.

Optional Swing Arms:

Dual Articulating Swing Arm: GMA-100

Dual Articulating Swing Arm: SA-780

Single Swing Arm: N-SAM-300
